ZEN32 Scene Controller Product Manual

Don't forget to register your product for extended warranty and more perks:

Click here to register your device here.

FEATURES

Switch button: 15 A relay for Z-Wave on/off control
4 remote control buttons: trigger scenes and control other devices in your Z-Wave network from this switch
NEW 800 series Z-Wave chip for better range and faster control
Direct 3-Way: works with regular on/off switches in a 3-way
Z-Wave Long Range for ultra reliable no-mesh communication
Smart bulb mode: disable relay and control the light via Z-Wave
Adjustable LED indicator in 7 colors and 3 brightness levels Ÿ S2 Security and SmartStart for easier inclusion

SPECIFICATIONS

Model Number: ZEN32 800LR
Z-Wave Region: US/CA/MX
Power: 120 VAC, 60 Hz
Maximum Load: 150W LED, 960W Incandescent, 1800W (15A) Resistive, 1/2 hp motor (DON’T use with receptacles)
Range: Up to 500 feet line of sight (or 1300 feet with ZWLR)
Operating Temperature: 32-104° F (0-40° C)
Installation and Use: Indoor only

CAUTION

This is an electrical device - please use caution when installing and operating the scene control switch. Remote control of appliances may result in unintentional or automated activation of power. Do not use this Z-Wave device to control electric heaters or other appliances which produce the risk of fire, burns, or electrical shock when unattended. To reduce risk of overheating and possible damage to other equipment, do not install this unit to control a receptacle; a motor-operated appliance; a fluorescent lighting fixture; or a transformer-supplied fixture.

BEFORE YOU INSTALL: This switch is intended for installation in accordance with the National Electric Code and local regulations. It is recommended that a licensed electrician perform this installation.

WARNING

This product should be installed indoors upon completion of any building renovations.
Prior to installation, the device should be stored in a dry, dust-and-mold-proof place.
Do not install the switch in a place with direct sun exposure, high temperature, or humidity. Ÿ Keep away from chemicals, water, and dust.
Ensure the device is never close to any heat source or open flame to prevent fire.
Ensure the device is connected to an electric power source that does not exceed the maximum load power.
No part of the device may be replaced or repaired by the user.

WIRING: READ IT!

Not sure what you're seeing? We'll help! Send us pictures of your set-up, before you disconnect any wires!

1. CHECK THE LOAD: lights only (150W for LED’s, 600W for incandescent), DON’T CONNECT THIS SWITCH TO OUTLETS OR TUBE LIGHTS.

2. POWER OFF: turn the circuit power off in the breaker panel before you start. If installing in a multi-switch box with multiple circuits, turn power off at all of the circuits.

3. CHECK THE WIRES: mark load (most often black), line (most often black), neutral (most often white), and ground (most often bare). 14 AWG wires only! Don’t rely exclusively on your multimeter to identify the wires!

4. REMOVE THE OLD SWITCH: disconnect the wires and label them with the included label stickers.

5. CONNECT THE Z-WAVE SWITCH: follow all installation steps carefully. Wire the switch EXACTLY like in the diagram.

HOW TO INSTALL THE WIRES

1. LIFT SCREW: carefully pull the screw away from the switch to make sure it’s loose. DO NOT force it. NO POWER TOOLS!

2. PRESS DOWN: press the loose screw down with your finger so it catches the thread.

3. INSERT WIRE: make sure the wire is perfectly straight, then insert it into the terminal while holding the screw down. DO NOT wrap wires around the terminal screws!

4. TIGHTEN: turn the screw clockwise to tighten the wire. DO NOT OVERTIGHTEN!

COMPLETE THE INSTALLATION

Secure your Z-Wave switch in the box with mounting screws, handling the wires with care. Isolate all bare wires and screws with electrical tape. Install the wall plate and restore power to circuit.

TEST THE SWITCH

The LED indicator should light up as soon as you turn the power back on if the switch (light) is OFF. Tap the switch button for ON and tap it again for OFF. If the test fails, please check that: Ÿ power is fully restored to the circuit Ÿ wiring matches the instructions exactly Ÿ the load isn’t too large and overheating the switch causing it to shut off.

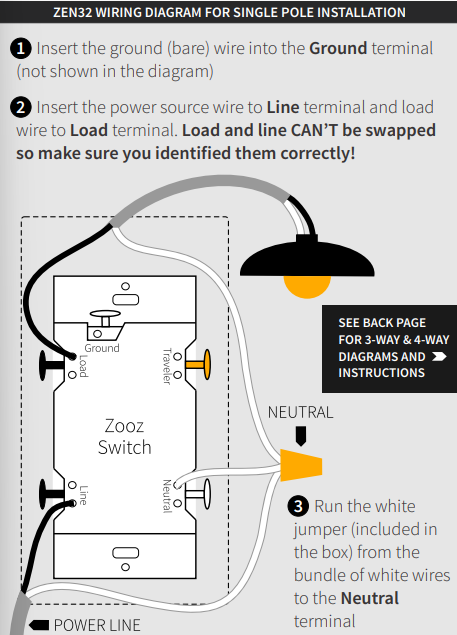

ZEN32 SINGLE POLE WIRING DIAGRAM

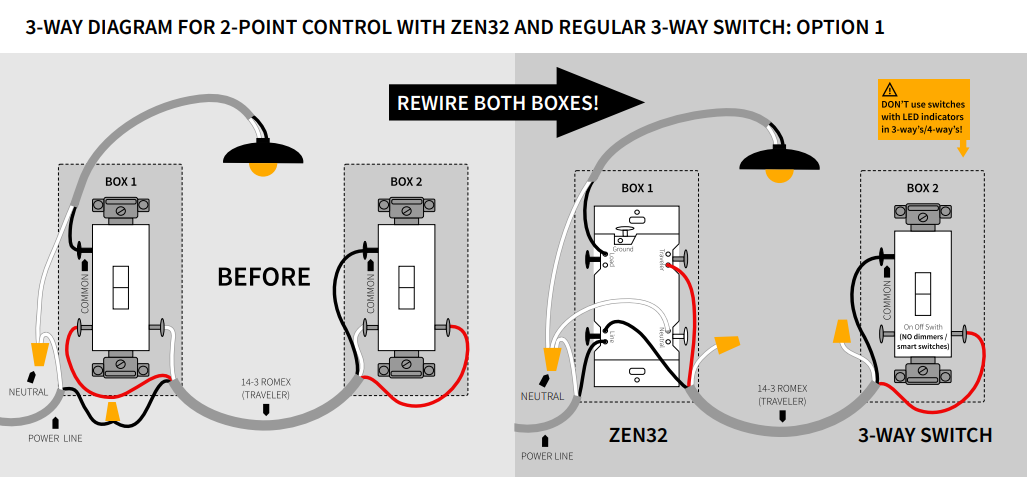

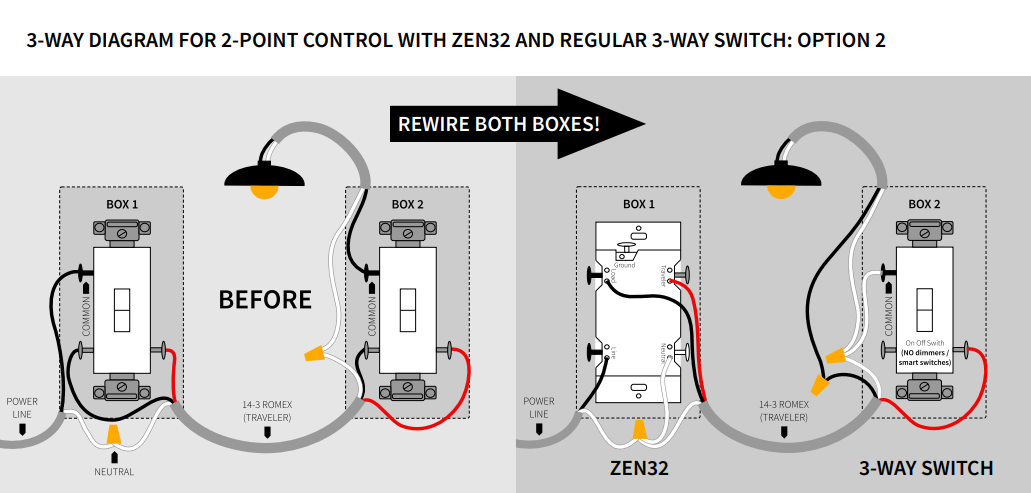

ZEN32 3-WAY WIRING DIAGRAMS

STOP: Wire and screw position, as well as color codes are for illustration only. You should not follow the colors and positioning in the illustration blindly. Always identify all wires prior to installing Zooz switches and make sure you can match the diagrams to your set-up exactly. Don’t experiment or attempt a “trial-and-error” installation for your own safety. Don’t disconnect any wires before documenting your set-up in each box with detailed images!

NOTE: If you are not comfortable identifying the wiring and completing the installation, please consult a licensed electrician. Make sure you have identified all wiring correctly before connecting the switch. If your wiring doesn’t match any of the below diagrams, contact our support: [email protected]

ON/OFF SWITCHES ONLY: Do not connect Zooz Z-Wave switches to an existing 3-way dimmer, illuminated switch, or an electronic add-on switch. Zooz switches can only be wired with mechanical on/off or momentary switches in a 3-way or 4-way setting! To simplify the diagrams, we did not include connections for the ground wire. Remember that all Zooz switches need to be wired according to the electrical code, with ground wire connected to the ground terminal.

POWER OFF: Cut power to the circuit before handling the wiring. Diagrams and instructions in this manual are for the ZEN32 model ONLY! Always follow the correct diagram for your own safety and to avoid equipment damage. Other Zooz switches may wire differently!

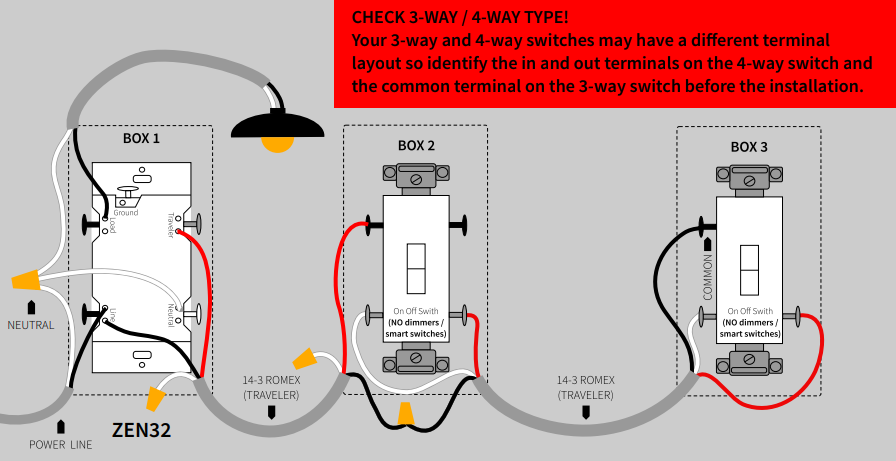

ZEN32 4-WAY WIRING DIAGRAM (LOAD AND LINE MUST BE IN THE SAME BOX)

FOLLOW THE DIAGRAM: Don’t follow the wire colors blindly - make sure you understand the role of each wire before moving forward with the installation. The colors used in this diagram are just an example of the many scenarios you’ll come across in multi-point control set-ups. Follow this diagram ONLY if you confirmed you have direct connection to power and light in the same box. If they’re in separate boxes, ask us about using the ZEN32 switch with ZAC99 momentary switches in 4-way and 5-way installations: [email protected].

NEED HELP?: If you’re having trouble reading the diagrams or don’t see your wiring set-up here, get in touch! We have more 3-way, 4-way, and 5-way diagrams and instructions. There are many ways to wire multi-point control set-ups so unless you can match your wiring to the diagrams here, please don’t attempt the installation for your own safety. [email protected] OR www.support.getzooz.com.

Z-WAVE CONTROL

There are 2 methods to add the device to your hub:

SmartStart:

REMOVE POWER FROM THE DEVICE.
Use the hub UI / app to scan the SmartStart code on the device. The SmartStart QR code / security PIN is located on the front metal plate of the switch and on the box.
Once completed, power on the device for SmartStart inclusion; it will be added automatically.
Do NOT click any of the buttons on the device during the process. (Except for SmartThings, you may need to click the upper paddle 3 times). See below for hub-specific instructions.

Manual Inclusion:

Initiate inclusion (pairing) in the app or hub UI.
Make sure the device is powered and finalize the inclusion at the device: click the main button 3 times quickly.
The LED indicator will blink blue to signal communication and turn green for 3 seconds if inclusion is successful or turn red for 3 seconds if the pairing attempt fails.

How to Add the ZEN32 Scene Controller to Home Assistant

How to Add the ZEN32 Scene Controller to HomeSeer

How to Add the ZEN32 Scene Controller to Hubitat

How to Add the ZEN32 Scene Controller to SmartThings

How to Add the ZEN32 Scene Controller to Z-Box

How to Add the ZEN32 Scene Controller to My Z-Wave System

TROUBLESHOOTING

The switch won’t add to your system? Try this:

Initiate EXCLUSION and tap the switch button 3 times quickly.
Tap the switch button 4-5 times quickly when adding it.
Bring the gateway controller (hub) closer to the switch, it may be out of range.
Get troubleshooting tips for your hub at www.support.getzooz.com

The switch won’t control the lights manually anymore? Try this:

Turn the power off at the breaker and check if a wire didn’t get loose.
Exclude the switch from the hub or reset it in case manual control was accidentally disabled.
The load may be incompatible so try it with a single incandescent bulb.

EXCLUSION (REMOVING / UNPAIRING DEVICE)

Bring your Z-Wave gateway (hub) close to the switch if possible.
Put the Z-Wave hub into exclusion mode.
Tap the switch button 3 times quickly (the LED indicator will start blinking blue).
Your hub will confirm exclusion, the LED indicator on the switch will turn green for 3 seconds, and the device will disappear from your controller's device list

Can't Add the ZEN32 Scene Controller to Home Assistant

Can't Add the ZEN32 Scene Controller to HomeSeer

Can't Add the ZEN32 Scene Controller to Hubitat

Can't Add the ZEN32 Scene Controller to SmartThings

Can't Add the ZEN32 Scene Controller to Z-Box

Can't Add the ZEN32 Scene Controller to My Z-Wave Hub

FACTORY RESET

If your primary controller is missing or inoperable, you may need to reset the device to factory settings. To reset the switch, press and hold the switch button for 20 seconds until the LED indicator turns solid red. Release the button, and immediately aer, tap remote button 1 once to complete the reset. The LED indicators on all buttons will flash red and cycle through colors for a successful reset. NOTE: All previously recorded activity and custom settings will be erased from the device’s memory.

ADVANCED SETTINGS

Here are all of the settings available on the most recent version of the device: ZEN32 Scene Controller Advanced Settings

How to Access the Advanced Settings for the ZEN32 Scene Controller on Home Assistant

How to Access the Advanced Settings for the ZEN32 Scene Controller on HomeSeer

How to Access the Advanced Settings for the ZEN32 Scene Controller on Hubitat

How to Access the Advanced Settings for the ZEN32 Scene Controller on SmartThings

How to Access the Advanced Settings for the ZEN32 Scene Controller on Z-Box

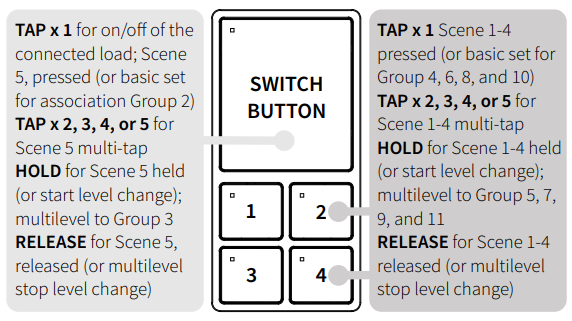

HOW IT WORKS

For direct association programming:

SWITCH BUTTON: reports association Group 1 lifeline to the hub, Group 2 basic set, Group 3 multilevel; reports Scene 5 with 7 attributes (actions)

BUTTON 1: Group 4 basic set, Group 5 multilevel; Scene 1 (7 actions)

BUTTON 2: Group 6 basic set, Group 7 multilevel; Scene 2 (7 actions)

BUTTON 3: Group 8 basic set, Group 9 multilevel; Scene 3 (7 actions)

DBUTTON 4: Group 10 basic set, Group 11 multilevel; Scene 4 (7 actions)

PROGRAMMING

There are 2 ways you can use the buttons on the Scene Controller to control other Z-Wave devices in your network:

Scene Control:

Great to trigger preset scenes with multiple devices
Perfect for smart bulb control and non Z-Wave devices
Supports 1-tap, 2-tap, 3-tap, 4-tap, 5-tap, button held, and button released for each button

2. Direct Association:

Great to control other Z-Wave devices directly
Perfect for Z-Wave smart bulb control or as a virtual add-on for existing Z-Wave switches and dimmers
Use only for Z-Wave devices included with the same security level as your Scene Controller
Supports 1-tap for on/off control (Group 2) and button held/released for dimming (Group 3), working in a sequence: press once to change state or hold to dim / increase brightness

Programming your Scene Controller using either of the above methods will depend on the capabilities and interface layout of your Z-Wave system. Check out the links below for steps to program the Scene Controller on your hub:

How to Program the ZEN32 Scene Controller on Home Assistant

How to Program the ZEN32 Scene Controller on HomeSeer

How to Program the ZEN32 Scene Controller on Hubitat

How to Program the ZEN32 Scene Controller on SmartThings

How to Program the ZEN32 Scene Controller on Z-Box

S2

This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. This product features the latest Security 2 (S2) framework to remove smart home network hacking risks. This device is equipped with a unique authentication code for trusted wireless communication.

ETL

This is an ETL certified device. ETL, just like UL, is a Nationally Recognized Testing Laboratory. The ETL mark is proof of product compliance with North American safety standards.

WARRANTY

This product is covered under a 1-year limited warranty with extended 5-year warranty once it’s registered. To read the full warranty policy, register your product, or file a warranty claim, please go to www.getzooz.com/warranty.

IN NO EVENT SHALL ZOOZ OR ITS SUBSIDIARIES AND AFFILIATES BE LIABLE FOR ANY INDIRECT, INCIDENTAL, PUNITIVE, SPECIAL, OR CONSEQUENTIAL DAMAGES, OR DAMAGES FOR LOSS OF PROFITS, REVENUE, OR USE INCURRED BY CUSTOMER OR ANY THIRD PARTY, WHETHER IN AN ACTION IN CONTRACT, OR OTHERWISE EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DA-MAGES. ZOOZ'S LIABILITY AND CUSTOMER'S EXCLUSIVE REMEDY FOR ANY CAUSE OF ACTION ARISING IN CON-NECTION WITH THIS AGREEMENT OR THE SALE OR USE OF THE PRODUCTS, WHETHER BASED ON NEGLIGENCE, STRICT LIABILITY, BREACH OF WARRANTY, BREACH OF AGREEMENT, OR EQUITABLE PRINCIPLES, IS EXPRESSLY LIMITED TO, AT ZOOZ'S OPTION, REPLACEMENT OF, OR REPAYMENT OF THE PURCHASE PRICE FOR THAT PORTION OF PRODUCTS WITH RESPECT TO WHICH DA-MAGES ARE CLAIMED. ALL CLAIMS OF ANY KIND ARISING IN CONNECTION WITH THIS AGREEMENT OR THE SALE OR USE OF PRODUCTS SHALL BE DEEMED WAIVED UNLESS MADE IN WRITING WITHIN THIRTY (30) DAYS FROM ZOOZ'S DELIVERY, OR THE DATE FIXED FOR DELI-VERY IN THE EVENT OF NONDELIVERY.

FCC NOTE THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. STORE INDOORS WHEN NOT IN USE. SUITABLE FOR DRY LOCATIONS ONLY. DO NOT IMMERSE IN WATER. NOT FOR USE WHERE DIRECTLY EXPOSED TO WATER.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions:

This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used according to instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in any given installation. If this equipment causes harmful interference to radio or television reception, the user may try to correct the interference by taking one or more of the following measures:

Reorient or relocate receiving antenna
Increase the separation between equipment and receiver
Connect equipment into a separate outlet or circuit from receiver
Consult the dealer or an experienced radio/TV technician for additional assistance
