ZEN58 Low Voltage XS Relay Product Manual

Don't forget to register your product for extended warranty and more perks:

Click here to register your device here.

FEATURES

Manual or Z-Wave™ on/off control for low Voltage loads
Great for automating garage doors and entry gates
Monitors analog dry contact inputs like open / close sensors
Installs behind your existing wall switch (single pole or 3-way)
Z-Wave™ Long Range for a next-level wireless network
Remembers and restores on/off status aer power failure
800 series Z-Wave and S2 SmartStart Security

SPECIFICATIONS

Model Number: ZEN58 800LR
Power: 9~40V AC/DC
Maximum Load: 3A at 240 V
Range: Up to 300 feet line of sight (up to 1300 feet with Z-Wave Long Range enabled, your hub needs to supports this feature)
Operating Temperature: 32-104° F (0-40° C)
Installation and Use: Indoor only
Dimensions: 1.2” x 1” x 0.6”

CAUTION

This is an electrical device - please use caution when installing and operating the relay. Remote control of appliances may result in unintentional or automated activation of power. Do not use this Z-Wave device to control electric heaters or other appliances which produce the risk of fire, burns, or electrical shock when unattended. To reduce risk of overheating and possible damage to other equipment, do not install this unit to control a receptacle; a motor-operated appliance; a fluorescent lighting fixture; or a transformer-supplied fixture.

This relay is intended for installation in accordance with the National Electric Code and local regulations. It is recommended that a licensed electrician perform this installation.

WIRING: READ IT!

1. CHECK THE LOAD: don’t exceed 3 A for resistive loads.

2. POWER OFF: turn the circuit power off in the breaker panel before you start. If installing in a multi-switch box with multiple circuits, turn power off at all of the circuits.

3. REMOVE THE WALL SWITCH: if the load is currently controlled by a wall switch, carefully remove it from the box and disconnect the wires from the switch.

4. CONNECT THE Z-WAVE RELAY: follow the instructions in the appropriate diagram for your set-up. If you can’t find your scenario in the diagrams below, please request custom instructions from our support team, we’re happy to help: [email protected].

WIRING TIPS

TAKE PICTURES: Before you disconnect any wires, document your set-up and send us images of your existing installation so we can help if needed.

GATHER YOUR TOOLS: Always use the correct screwdriver size for the terminal screws on your Z-Wave relay and wall switches (if connecting them). Use appropriate electrical tools when cutting, prepping, and stripping electrical wires. If you don’t have the necessary tools to perform the installation or are not sure which tools to use or how, please hire an electrician to complete the installation for you.

SAFETY FIRST: Follow the National Electrical Code and your local safety regulations when performing the installation, including (but not limited to), choosing the correct gauge of jumper wires. The recommended gauge for 15 Amp circuits is 14 AWG.

HOW TO SECURE WIRES IN TERMINALS: first, unscrew the appropriate terminal’s screw just far enough so there is a clear opening in the terminal for the wire to go in. Make sure the wire is stripped at the right length and perfectly straight before you insert it into the terminal. Once you put the wire in the terminal, carefully screw the terminal screw back in to hold down the wire. Check the connection by gently pulling on the connected wire to make sure it’s fixed securely. 5. POWER THE RELAY: use the “DC+” and “DC-” terminals on the device to bring low voltage power to it. This relay can only be powered by a 9~40V AC/DC power source. Make sure to follow polarity when using DC power.

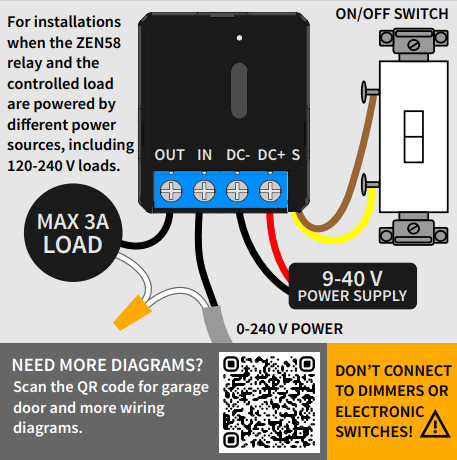

ZEN58 WIRING DIAGRAM WITH SEPARATE POWER SOURCES

TEST THE RELAY

The LED indicator should start blinking green when you turn the power back on. Toggle the switch connected to the relay to check if the load changes state.

If the test fails, please check that:

power is fully restored to the circuit
wiring matches the instructions exactly
the load isn’t too large, overheating the relay and shutting it off.

WARNING

This product should be installed indoors upon completion of any building renovations.
Prior to installation, the device should be stored in a dry, dust-and-mold-proof place.
Do not install the relay in a place with direct sun exposure, high temperature, or humidity. Keep away from chemicals, water, and dust.
Ensure the device is never close to any heat source or open flame to prevent fire.
Ensure the device is connected to an electric power source that does not exceed the maximum load power.
No part of the device may be replaced or repaired by the user.

Z-WAVE CONTROL

There are 2 methods to add the relay to your hub:

SmartStart: use the hub UI / app to scan the SmartStart code on the device. The SmartStart QR code / security PIN is located on the back of the relay. Simply power the device for SmartStart inclusion, it will be added automatically. Do NOT press the Z-Wave button. For SmartThings, you may need to tap the Z-Wave button 3 times. See links below to hub-specific instructions.

Manual inclusion: initiate inclusion (pairing) in the app or hub UI. Make sure the device is powered and finalize the inclusion at the relay: tap the Z-Wave button on the relay 3 times quickly. The LED indicator will blink green to signal communication and turn green for 2 seconds if inclusion is successful or turn red for 2 seconds if the pairing attempt fails.

How to Add the ZEN58 Low Voltage XS Relay to Home Assistant

How to Add the ZEN58 Low Voltage XS Relay to Home Seer

How to Add the ZEN58 Low Voltage XS Relay to Hubitat

How to Add the ZEN58 Low Voltage XS Relay to SmartThings

How to Add the ZEN58 Low Voltage XS Relay to Z-Box

TROUBLESHOOTING

The relay won’t add to your system? Try this:

1. Initiate EXCLUSION and click the Z-Wave button 3 times quickly.

2. Click the Z-Wave button 3 times as quickly as possible to add.

3. Bring the hub closer to the relay, it may be out of range.

4. Get more tips for your hub at the links below

Can't Add the ZEN58 Low Voltage XS Relay to Home Assistant

Can't Add the ZEN58 Low Voltage XS Relay to HomeSeer

Can't Add the ZEN58 Low Voltage XS Relay to Hubitat

Can't Add the ZEN58 Low Voltage XS Relay to SmartThings

Can't Add the ZEN58 Low Voltage XS Relay to Z-Box

The relay won’t control the load manually anymore? Try this:

1. Turn power off at the breaker and check if a wire didn’t get loose.

2. Exclude the relay from the hub or reset it.

3. The load may be incompatible, double check the specs

FACTORY RESET

If your primary controller is missing or inoperable, you may need to reset the device to factory settings. To reset the relay, click the Z-Wave button once and immediately aer, press and hold the button for 15 seconds. The LED indicator will flash during the process and turn red for 3 seconds to confirm successful reset. NOTE: All previously recorded activity and custom settings will be erased from the device’s memory.

ADVANCED SETTINGS

Here is a selection of settings available to customize your relay:

ZEN58 Low Voltage XS Relay Advanced Settings

Here are hub-specific instructions to access the advanced settings:

How to Access the Advanced Settings for the ZEN58 Low Voltage XS Relay on Home Assistant

How to Access the Advanced Settings for the ZEN58 Low Voltage XS Relay on HomeSeer

How to Access the Advanced Settings for the ZEN58 Low Voltage XS Relay on Hubitat

How to Access the Advanced Settings for the ZEN58 Low Voltage XS Relay on SmartThings

How to Access the Advanced Settings for the ZEN58 Low Voltage XS Relay on Z-Box

ASSOCIATION

This relay supports Group 1 with up to 5 devices for Lifeline Group communication, Group 2 with up to 5 devices, and Group 3 for up to 5 devices. This device will send BASIC REPORT and SWITCH BINARY REPORT to Group 1 and BASIC SET command to group 2 and group 3 (for EP2) when the status changes. You can set direct association to have the relay control another ZWave device independently of the hub by using Group 2 or Group 3 (for EP2 if parameter 5 is set to value 10). Not every hub exposes direct association settings in the interface so please check with your system provider for details or contact our support for help.

S2

This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. This product features the latest Security 2 (S2) framework to remove smart home network hacking risks. This device is equipped with a unique authentication code for trusted wireless communication.

WARRANTY

This product is covered under a 12-month limited warranty and a 5-year extended warranty once registered. To read the full warranty policy or file a warranty claim, please go to www.getzooz.com/warranty,

IN NO EVENT SHALL ZOOZ OR ITS SUBSIDIARIES AND AFFILIATES BE LIABLE FOR ANY INDIRECT, INCIDENTAL, PUNITIVE, SPECIAL, OR CONSEQUENTIAL DAMAGES, OR DAMAGES FOR LOSS OF PROFITS, REVENUE, OR USE INCURRED BY CUSTOMER OR ANY THIRD PARTY, WHETHER IN AN ACTION IN CONTRACT, OR OTHERWISE EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DA-MAGES. ZOOZ'S LIABILITY AND CUSTOMER'S EXCLUSIVE REMEDY FOR ANY CAUSE OF ACTION ARISING IN CON-NECTION WITH THIS AGREEMENT OR THE SALE OR USE OF THE PRODUCTS, WHETHER BASED ON NEGLIGENCE, STRICT LIABILITY, BREACH OF WARRANTY, BREACH OF AGREEMENT, OR EQUITABLE PRINCIPLES, IS EXPRESSLY LIMITED TO, AT ZOOZ'S OPTION, REPLACEMENT OF, OR REPAYMENT OF THE PURCHASE PRICE FOR THAT PORTION OF PRODUCTS WITH RESPECT TO WHICH DA-MAGES ARE CLAIMED. ALL CLAIMS OF ANY KIND ARISING IN CONNECTION WITH THIS AGREEMENT OR THE SALE OR USE OF PRODUCTS SHALL BE DEEMED WAIVED UNLESS MADE IN WRITING WITHIN THIRTY (30) DAYS FROM ZOOZ'S DELIVERY, OR THE DATE FIXED FOR DELI-VERY IN THE EVENT OF NONDELIVERY.

FCC NOTE

THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. STORE INDOORS WHEN NOT IN USE. SUITABLE FOR DRY LOCATIONS ONLY. DO NOT IMMERSE IN WATER. NOT FOR USE WHERE DIRECTLY EXPOSED TO WATER.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions:

1. This device may not cause harmful interference

2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used according to instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in any given installation. If this equipment causes harmful interference to radio or television reception, the user may try to correct the interference by taking one or more of the following measures:

Reorient or relocate receiving antenna
Increase the separation between equipment and receiver
Connect equipment into a separate outlet or circuit from receiver
Consult the dealer or an experienced radio/TV technician for additional assistance
