Setting up a virtual 3-way on the Z-Box hub lets you pair two Zooz switches or dimmers to control the same light—without needing a wired connection between the switches. In this setup, the main switch or dimmer is rewired as a single pole, while the remote unit connects to power, neutral, and ground only.
There are two ways to program this configuration: Direct Association and Central Scene. Direct Association allows the switches to communicate directly outside of the hub—ideal when both are added via the standard Z-Wave mesh network (this will not work for switches that are included using Z-Wave Long Range). Meanwhile, Central Scene relies on hub communication and scene commands, a perfect choice when using Z-Wave Long Range. This guide walks you through both methods, so you can choose the best fit for your setup and ensure your devices stay in perfect sync.
Please ensure you have followed the correct wiring diagram for the virtual 3-way. There cannot be a wired connection between the smart switches.
1. Direct Association (Recommended)
*Note: Direct Association can only be used when the switches are included to the hub using the standard Z-Wave mesh protocol. Z-Wave Long Range by nature does not allow for device-to-device associations.
Our unique programming design allows our switches to be directly associated while still maintaining the correct status on each switch. Direct Association allows the switches to be linked together and communicate outside of the hub. Your Z-Wave system needs to support this feature and both switches need to be added to your hub with the same level of security.
We recommend that you use the ZEN71 On/Off switch, ZEN72 Dimmer, ZEN75 Heavy Duty Switch, ZEN30 Double Switch, ZEN32 Scene Controller, or ZEN35 Scene Dimmer models with the latest firmware for this scenario and program them according to the instructions below for the best experience. In our below example, we're using the ZEN72 Dimmer as the main dimmer (directly wired to the load) with the ZEN35 Scene Dimmer in the remote box (connected to power line, neutral, and ground only):
To start, we recommend checking the firmware version on your dimmer/switch. The instructions are simpler if you are using firmware higher than 3.30; if your unit is a hardware VER 3.0, please update your unit to the latest available firmware for your hardware version before programming the association.
Dimmer/Switch Settings/Parameter Instructions
-
Main dimmer or on/off switch (connected to load): No changes in settings
-
Remote dimmer or on/off switch (not directly wired to the load): no changes in settings (as long as you are on firmware higher than 3.30).
- If you have an earlier firmware, you will need to set Parameter 7 to value 11 (ONLY if your firmware is earlier than 3.30; this will break the direct association if used on firmware 3.30 or later.
Set the Association
On/Off Switches:
Set the association for Group 2 only, adding the device ID's for the other switch in the group. So, if switch A is your main switch and switch B is your remote switch, add switch B to Group 2 on switch A and add switch A to Group 2 on switch B.
-
IMPORTANT: The remote switch can then only be used from the paddles (you need to hide it in your interface not to trigger it via Z-Wave) while any Z-Wave or wireless control of the light needs to happen from the main switch A. This will ensure both devices stay in sync at all times.
Dimmers:
Set the association for Group 3 only, adding the device ID's for other dimmers in the group. So if dimmer A is your main dimmer and dimmer B is your remote dimmer, add dimmer B to Group 3 on dimmer A and add dimmer A to Group 3 on dimmer B.
-
IMPORTANT: The remote dimmer can then only be used from the paddles (you need to hide it in the UI not to trigger it via Z-Wave) as any Z-Wave or wireless control of the light needs to happen from the main dimmer A. This will ensure both devices stay in sync at all times.
Below we have an example on how to program two Zooz dimmers via Direct Association in the virtual 3-way. If you're programming On/Off switches, the only difference will be to use Group 2 instead of Group 3.

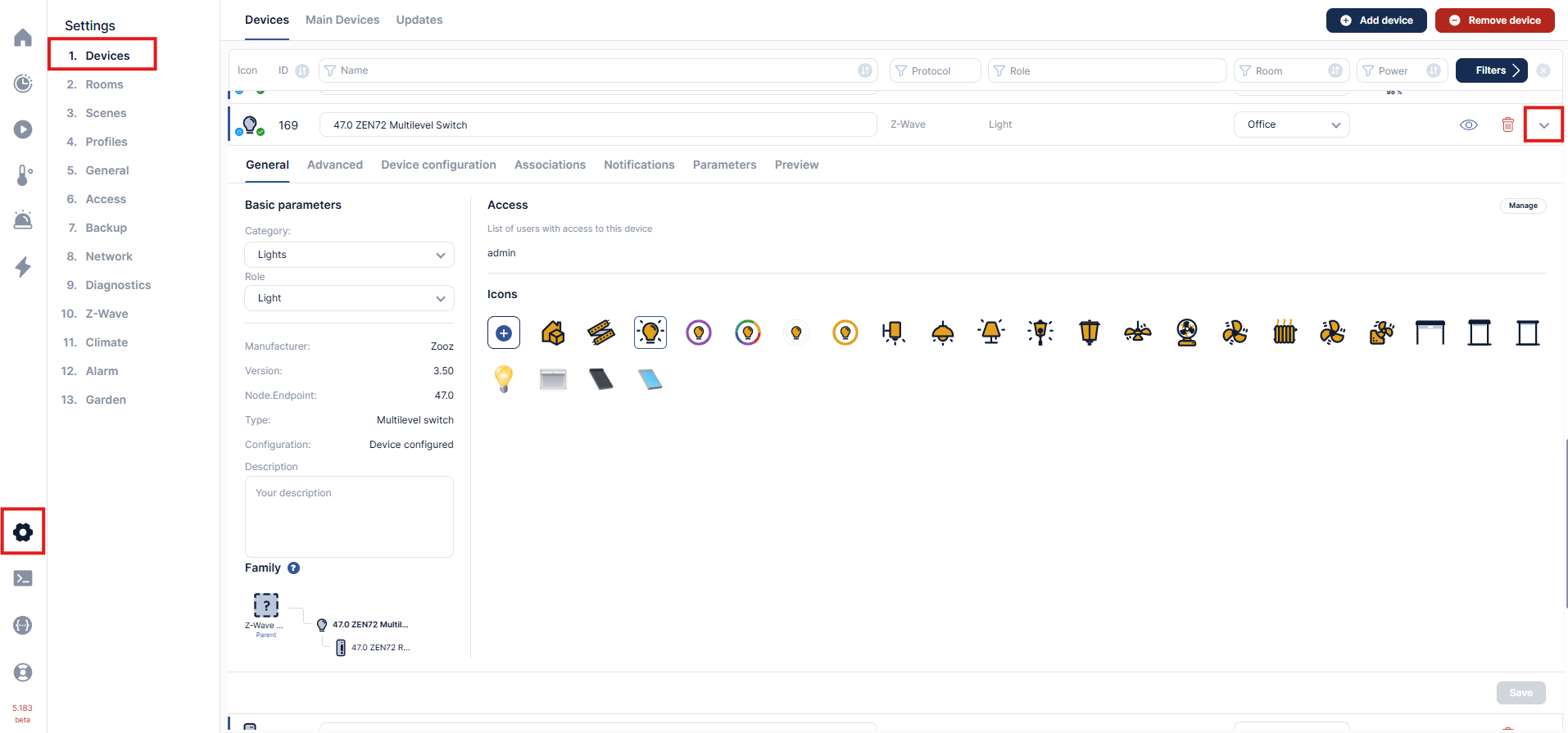

1. Dimmer A: This is our main dimmer that is directly wired to the load (ZEN72 in this example). Click Settings > Devices > Drop Down Arrow for your main Dimmer:

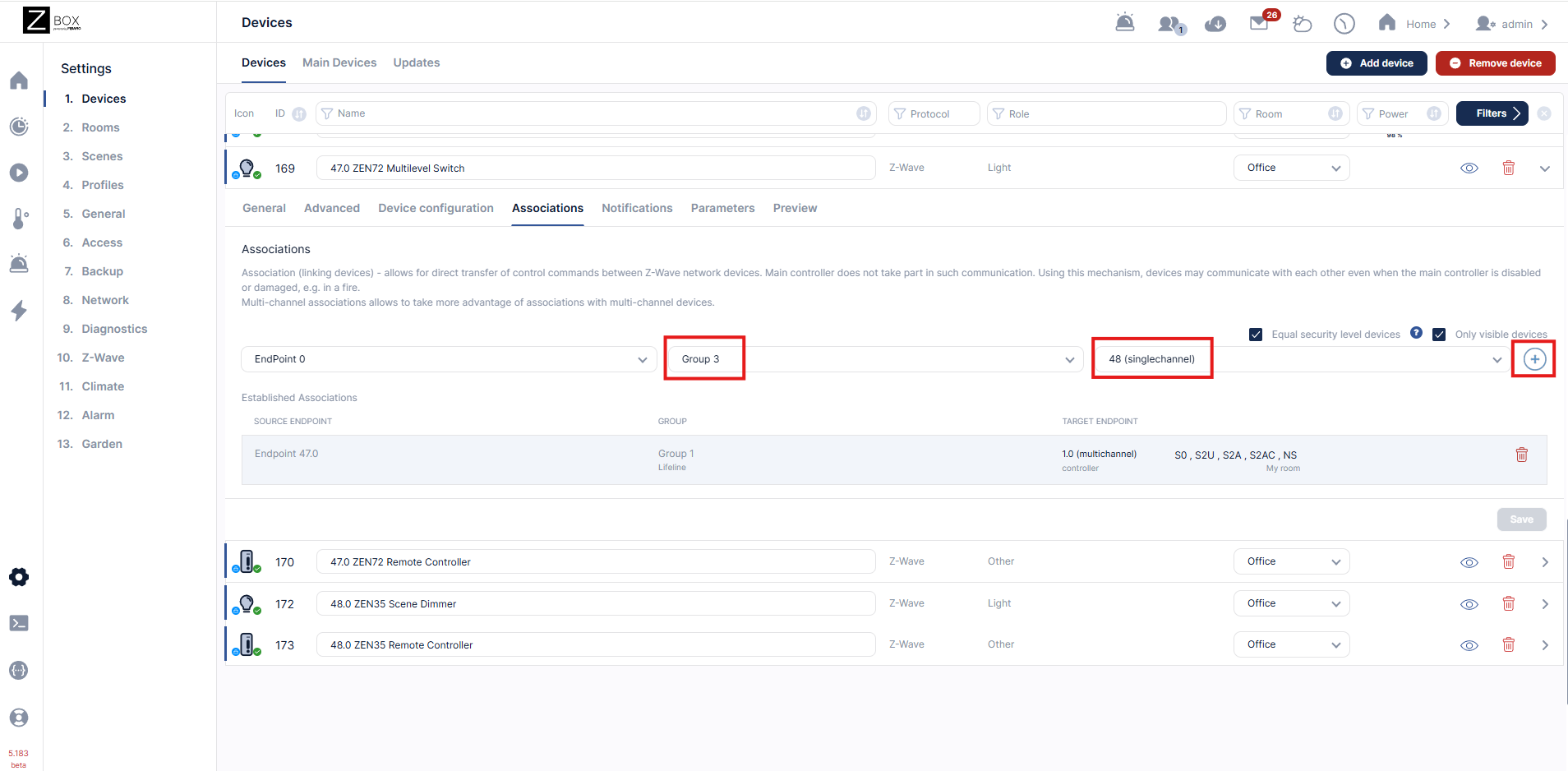

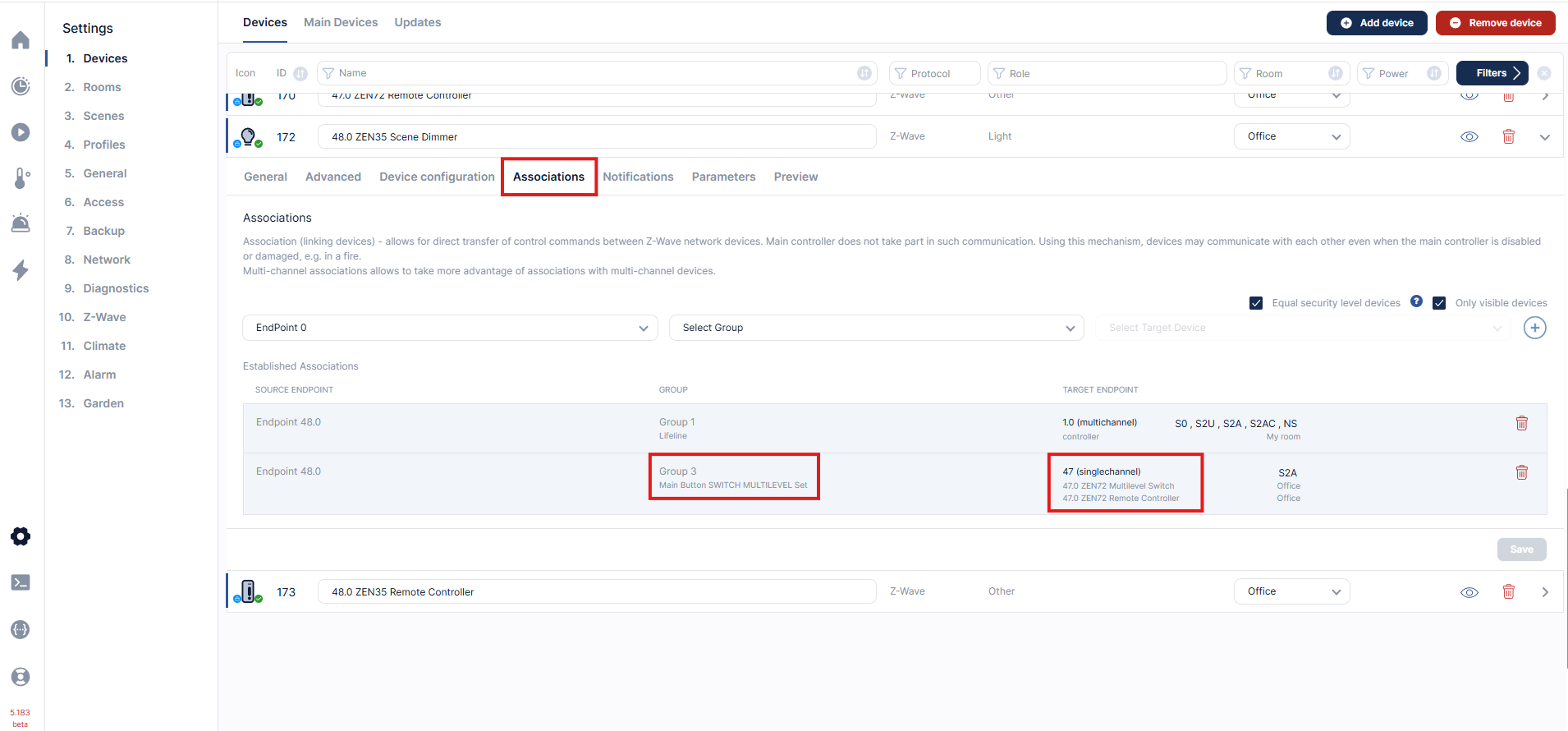

2. Select Associations. The Endpoint will stay at 0. Select Group 3 under Groups. Select your secondary dimmer as the target device (in our example this will be the ZEN35 Scene Dimmer). Note that the device is denoted by its node ID (48), which can be seen at the bottom of the screenshot as well. Click + to add the association.

3. Dimmer B: this is the remote dimmer, not directly wired to the load (ZEN35 in this example). Select Associations under the drop down arrow for the remote dimmer. The Endpoint will stay at 0. Select Group 3 under Groups. Select your main dimmer as the target device (in our example this will be the ZEN72 Dimmer). Note that the device is denoted by its node ID (47). Click + to add the association.

Test the association by turning the light on using the paddles on the remote dimmer and the main dimmer. Both devices should turn the light on and off and dim.
2. Central Scene
This option uses the multi-tap button functionality of the switches. They communicate through the hub which needs to support central scene commands, including "start level change" and "stop level change" commands for remote dimming. This option would be selected if your switches are included to your hub via Z-Wave Long Range.
Central scene uses the status reported by each switch. To keep the devices in sync, you'll need to create 4 rules/scenes:
- If switch A is turned on, then turn switch B on.
- If switch A is turned off, then turn switch B off.
- If switch B is turned on, then turn switch A on.
- If switch B is turned off, then turn switch A off.
In the example below, we're showing the ZEN72 as the main dimmer (connected to the load) and the ZEN30 as the remote switch.
1. Make sure you're logged in to the WEB UI with local connection (same wifi network as your Z-Box Hub).

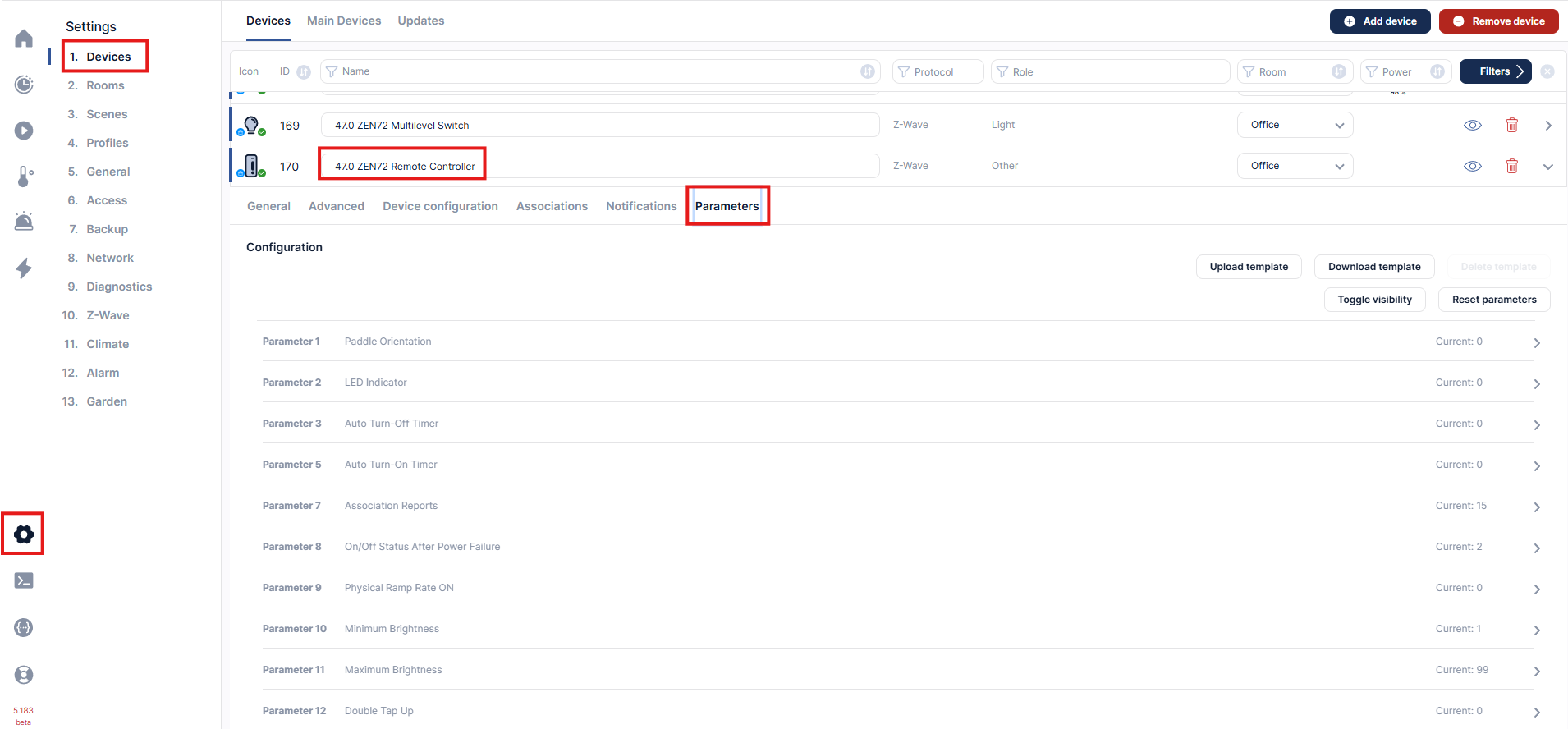

2. Click on Settings cogwheel > Devices and scroll to Dimmer/Switch A (main switch controlling the load). In the below example, this is the ZEN72 Dimmer. Your Zooz switch will display as two devices: an on/off or a dimmer device and a remote controller device. Click on the arrow next to the remote controller device for the Zooz switch you would like to program > click Parameters.

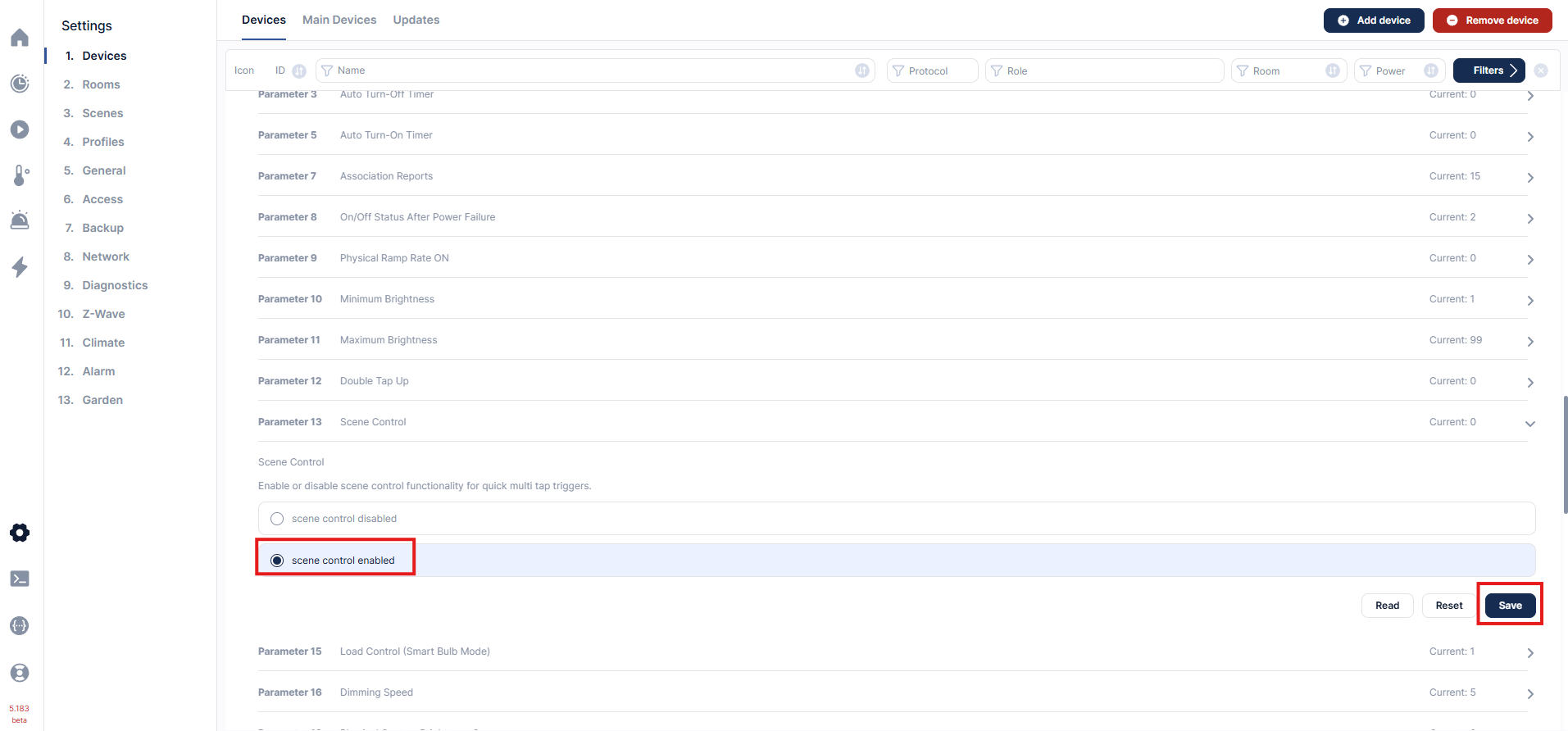

3. You'll see the settings for the device listed - click on the arrow next to the Scene Control setting to enable it. Click Save.

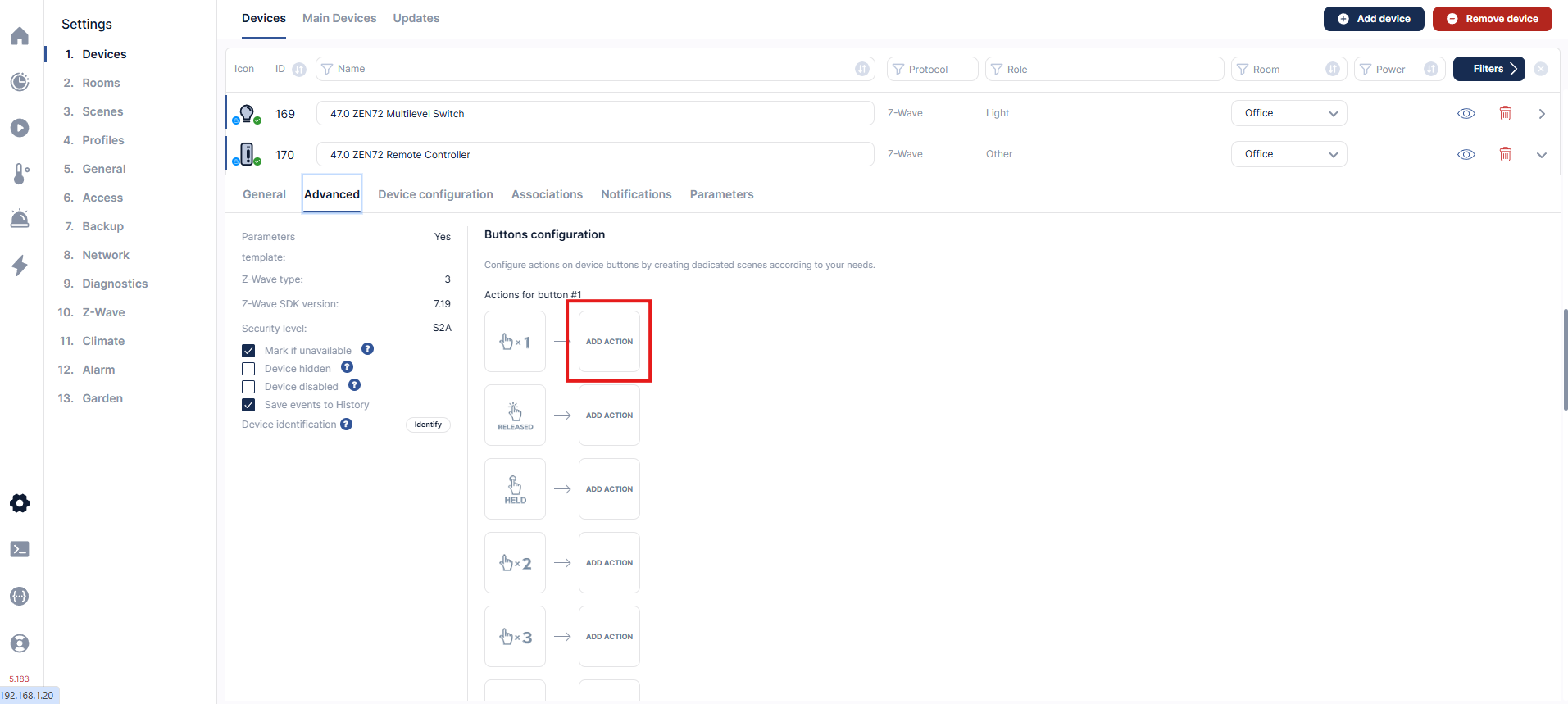

4. Click on the Advanced tab to see the button trigger menu and assign actions to the paddles of your switch. Button 1 refers to the top paddle and button 2 refers to the bottom paddle on your switch. Simply click on the "ADD ACTION" button to start a new scene for the trigger of your choice.

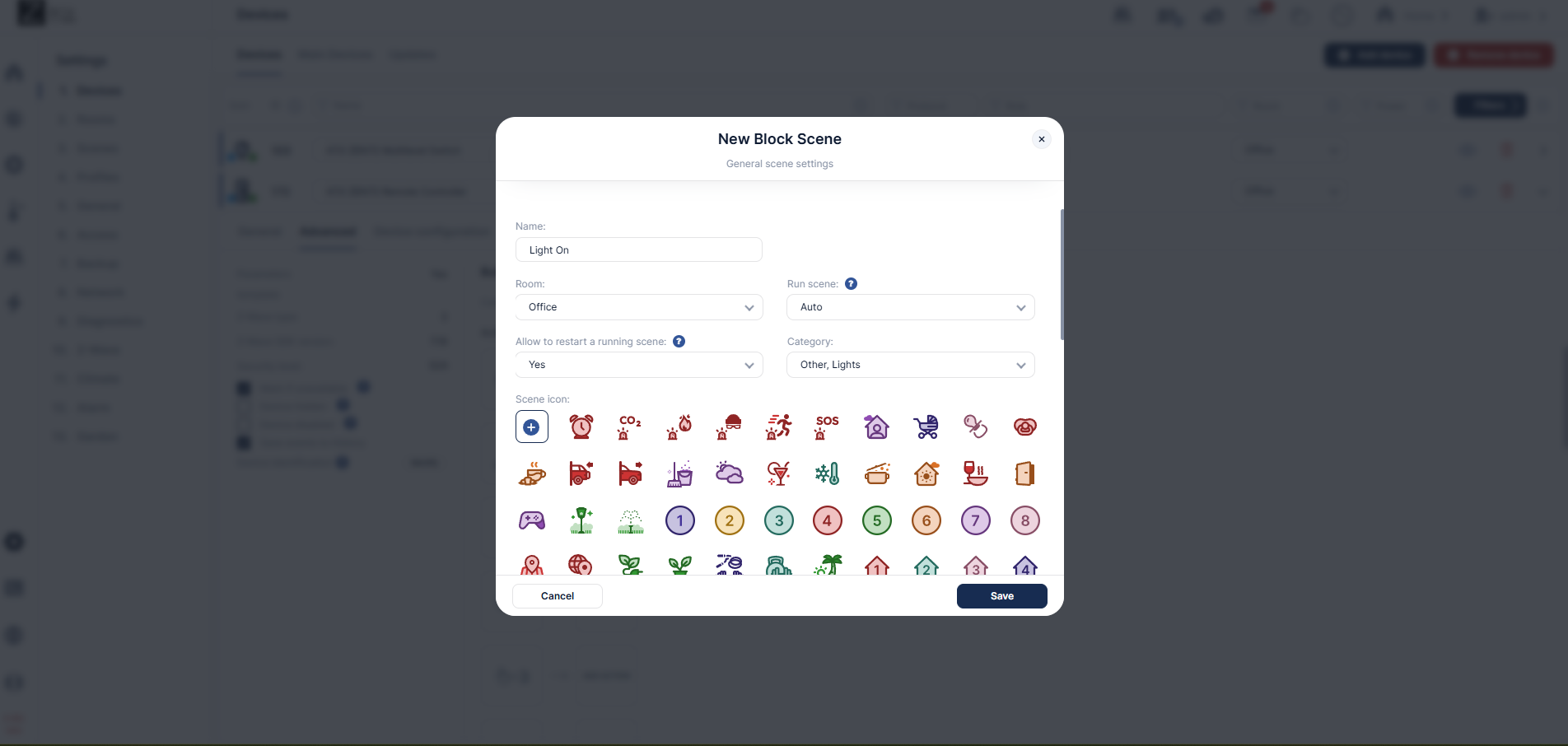

5. The block scene creator will pop up. Name your scene, select the room, etc. and click Save when done.

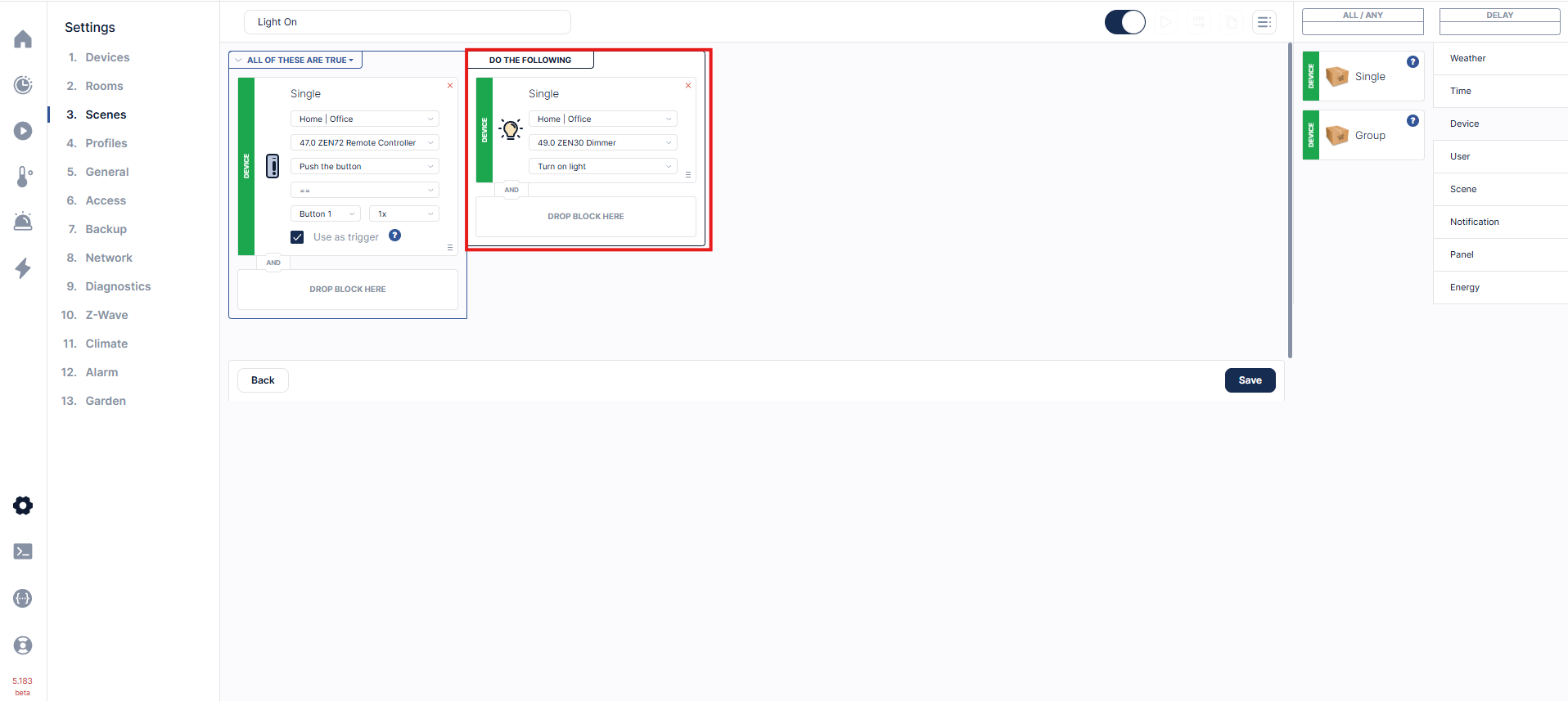

6. The ZEN72 will be automatically populated in the first section of the block scene builder. Drag and drop the Single device tile to the Do The Following section. Select your remote dimmer; in this example we're using the ZEN30. Set the behavior to turn on the light. Click Save when done.

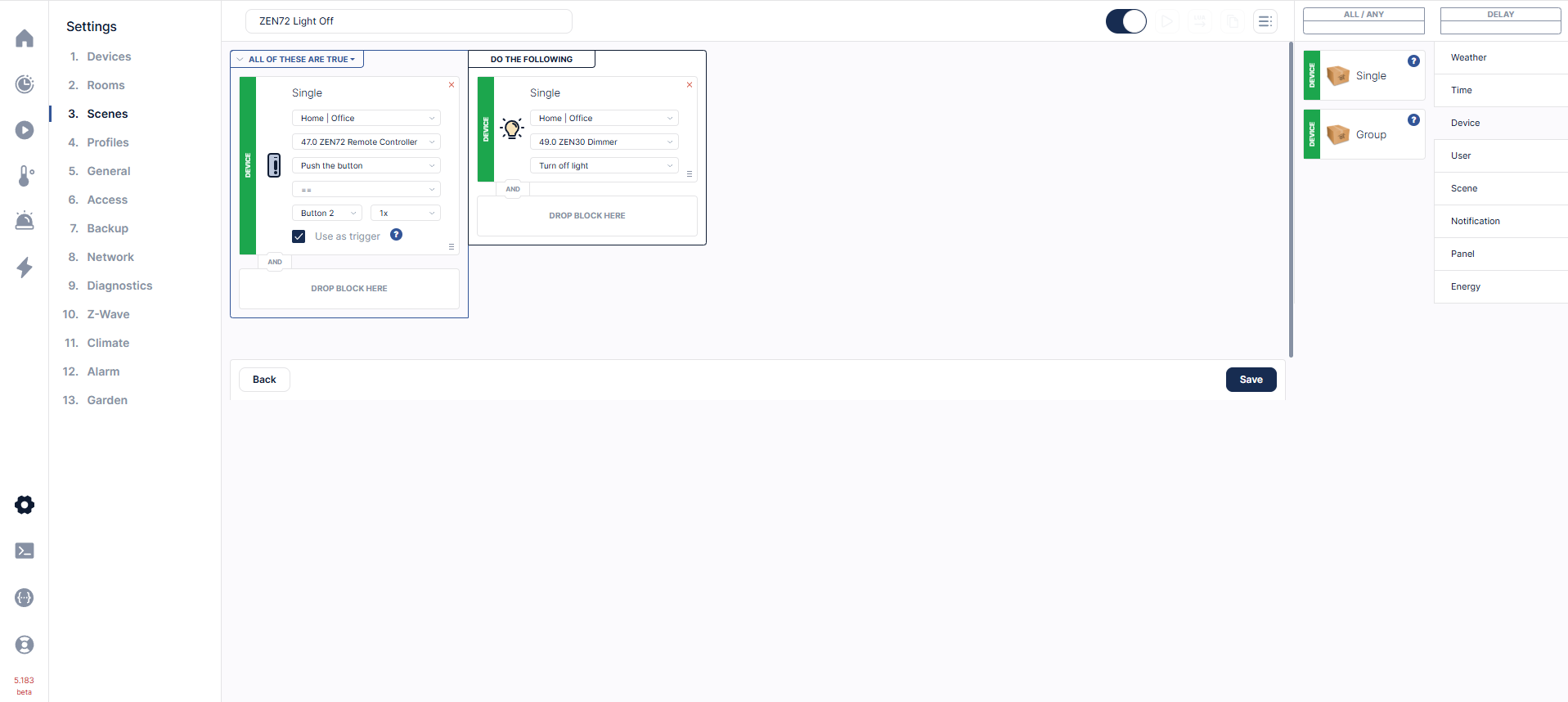

7. Go back to your devices and repeat the process, this time using Button 2 on the ZEN72 (this is the lower paddle):

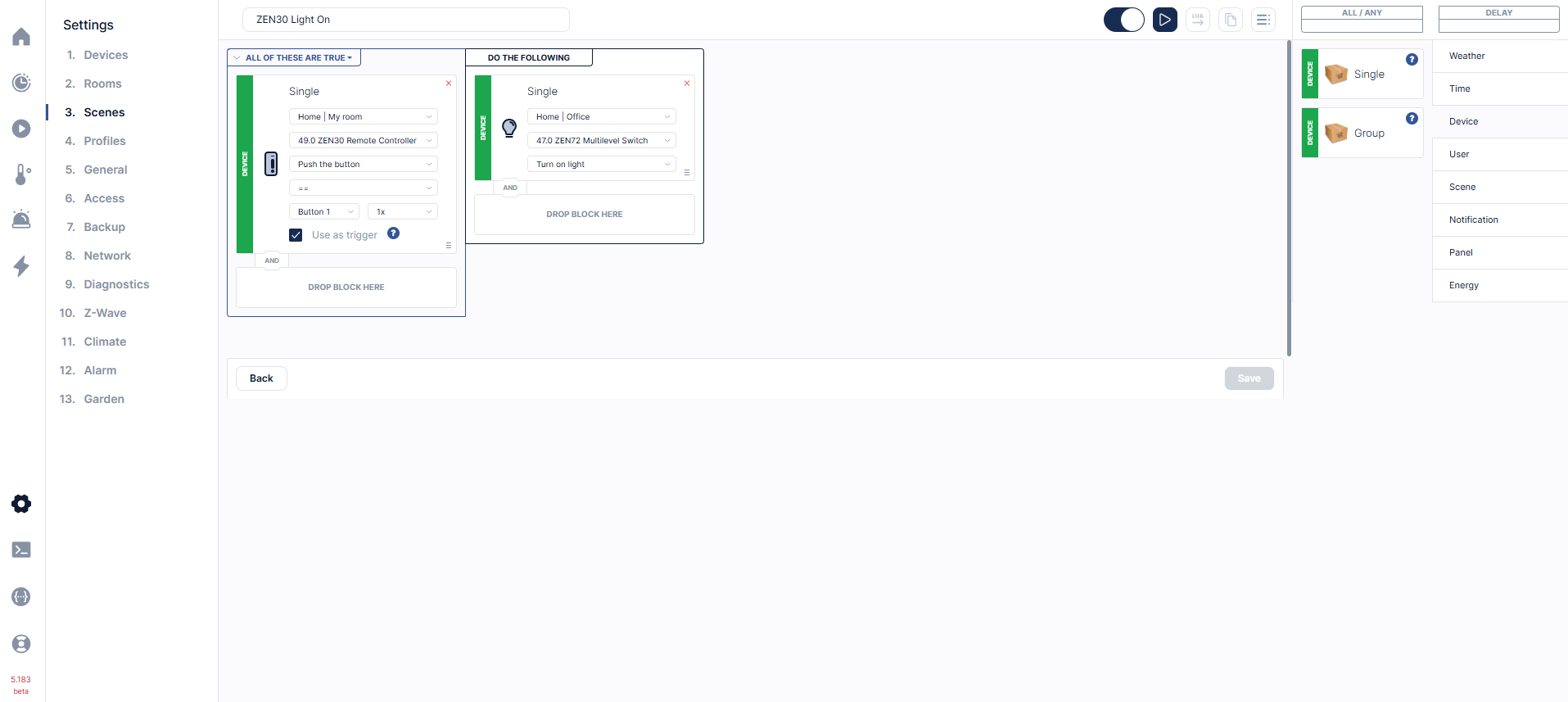

8. Go back to your devices and create the same turn on scene using the ZEN30 remote control device instead:

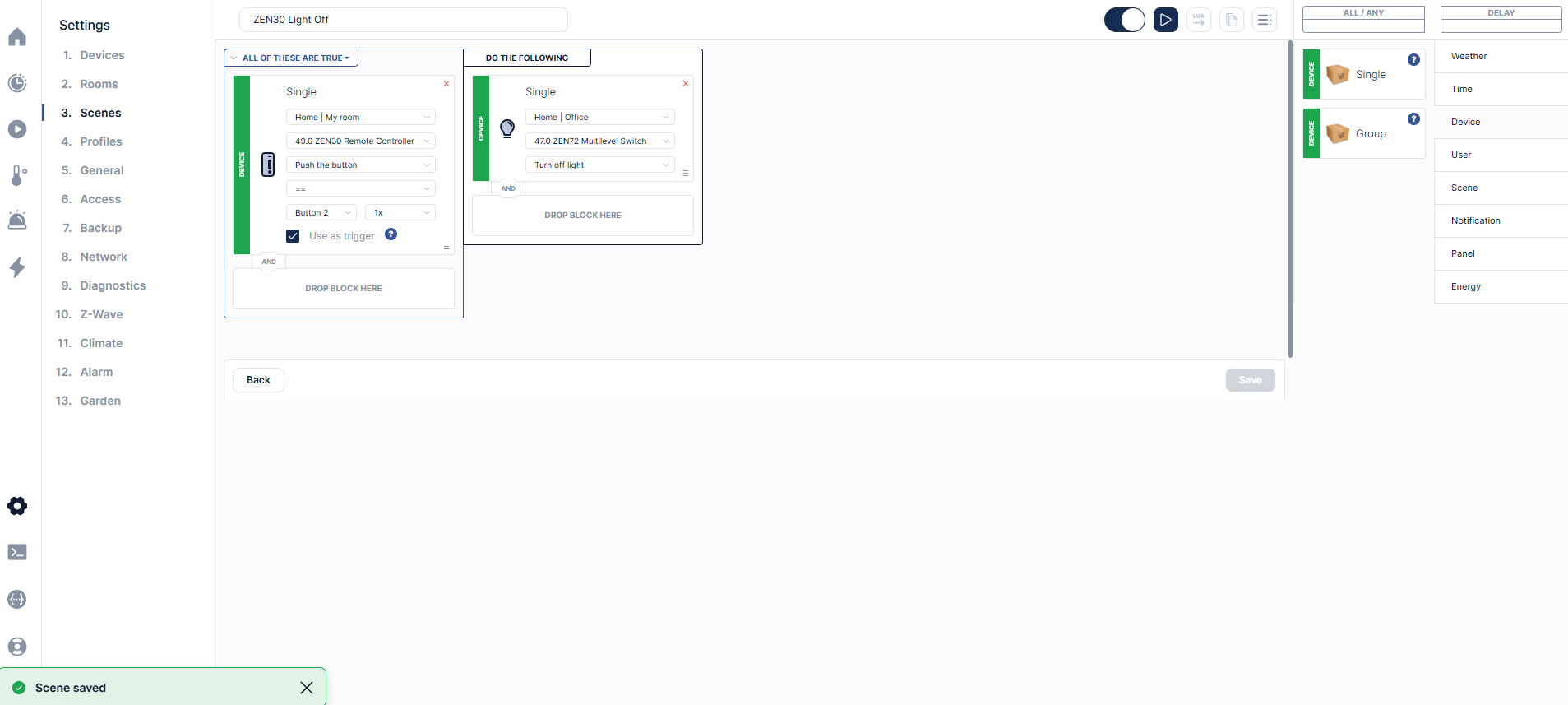

9. Go back to your devices and create the same turn off scene using the ZEN30 remote control device:

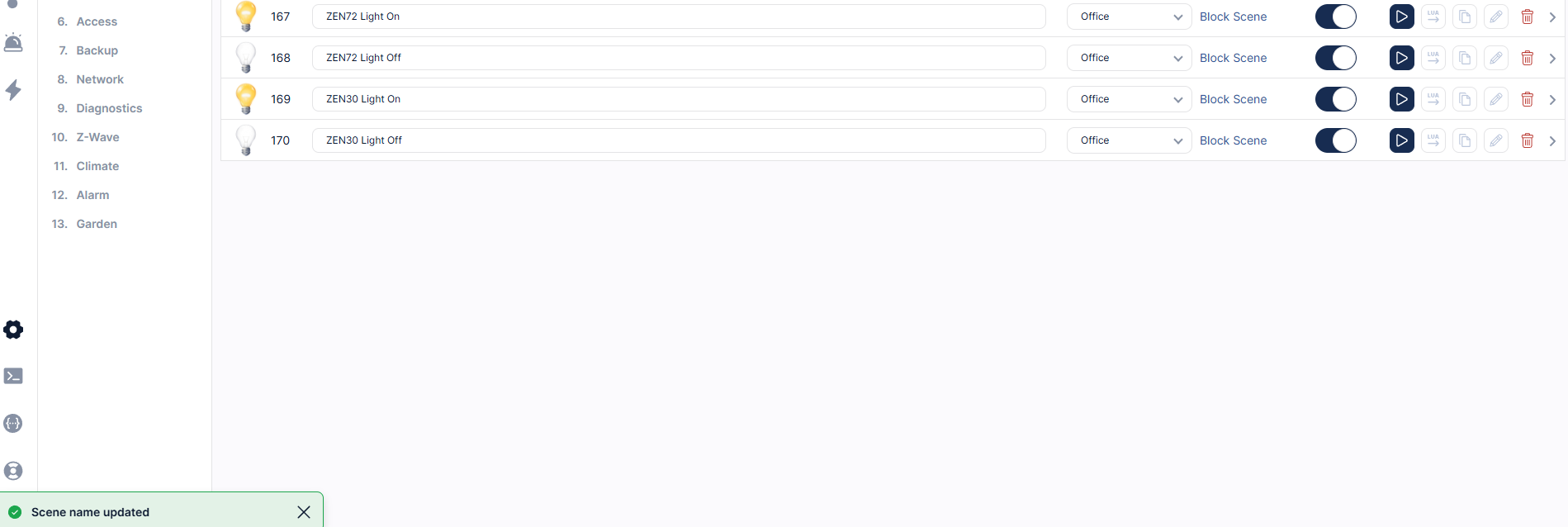

10. You will end up with 4 total scenes, in order to keep the two switches in sync:

11. Test your virtual 3-way!
