ZEN57 XS Relay Product Manual

Don't forget to register your product for extended warranty and more perks:

Click here to register your device here.

FEATURES

Manual or Z-Wave™ on/off control with instant status updates
Great for automating lights and loads up to 5A
Installs behind your existing wall switch (single pole or 3-way)
Z-Wave™ Long Range for a next-level wireless network
Remembers and restores on/off status aer power failure
Works with LED and incandescent bulbs
800 series Z-Wave and S2 SmartStart Security

SPECIFICATIONS

Model Number: ZEN57 800LR
Power: 100-240V~, 50/60Hz
Maximum Load: 5A resistive (120V: 500W incandescent, 150W LED bulbs / 240V: 1000W incandescent, 300W LED bulbs)
Range: Up to 300 feet line of sight (up to 1300 feet with ZWLR)
Operating Temperature: 32-104° F (0-40° C)
Installation and Use: Indoor only
Dimensions: 1.2” x 1” x 0.6”

CAUTION

This is an electrical device - please use caution when installing and operating the relay. Remote control of appliances may result in unintentional or automated activation of power. Do not use this Z-Wave device to control electric heaters or other appliances which produce the risk of fire, burns, or electrical shock when unattended. To reduce risk of overheating and possible damage to other equipment, do not install this unit to control a receptacle; a motor-operated appliance; a fluorescent lighting fixture; or a transformer-supplied fixture.

Before You Install: This relay is intended for installation in accordance with the National Electric Code and local regulations. It is recommended that a licensed electrician perform this installation.

WIRING: READ IT!

CHECK THE LOAD: don’t exceed 150W for LED’s, 500W for incandescent, or 5 A for resistive loads. DO NOT CONNECT THIS RELAY TO SWITCHED RECEPTACLES.
POWER OFF: turn the circuit power off in the breaker panel before you start. If installing in a multi-switch box with multiple circuits, turn power off at all of the circuits.
CHECK THE WIRES: mark load (most oen black), line (most oen black), neutral (most oen white), and ground (most oen bare). 14 AWG wires only! Don’t rely exclusively on your multimeter to identify the wires!
DISCONNECT THE OLD SWITCH: remove the wires and label them accordingly.
CONNECT THE Z-WAVE RELAY: follow all installation steps carefully. Wire the relay EXACTLY like in the diagram.

Not sure what you're seeing? Send us detailed images of the current set-up, BEFORE you disconnect the wires. These are the types of images we need to see in order to assist.

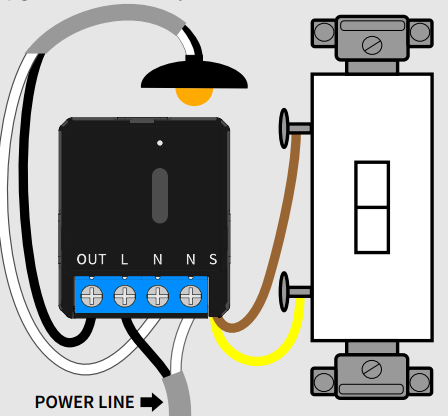

ZEN57 WIRING DIAGRAM FOR SINGLE POLE INSTALLATION

Keep your existing wall switch connected to ground.
Connect the power source to the L terminal on the ZEN57 and the load wire to OUT terminal. Load and line CAN’T be swapped so make sure you identified them correctly!
Connect the neutral wires to the N terminals (or run a jumper)
Connect the wall switch terminals to the yellow and brown S pigtails on the ZEN57 relay

NOTE: Connect to on/off switches only. Do not connect the relay to a wall dimmer, illuminated switch, or an electronic add-on switch. The ZEN57 relay can only be wired with mechanical on/off or momentary switches in single pole, 3-way, or 4-way settings!

Need 3-way, 4-way, or installation at the fixture diagrams? See the link below:

Additional ZEN57 Wiring Diagrams

COMPLETE INSTALLATION

Secure your Z-Wave relay and the wall switch in the box with mounting screws, handling the wires with care. Install the wall plate and restore power to the circuit.

TEST THE RELAY

The LED indicator should start blinking green when you turn the power back on. Toggle the switch connected to the relay to check if the load changes state. If the test fails, please check that:

power is fully restored to the circuit
wiring matches the instructions exactly
the load isn’t too large and overheating the relay causing it to shut off

WARNING

This product should be installed indoors upon completion of any building renovations.
Prior to installation, the device should be stored in a dry, dust-and-mold-proof place.
Do not install the relay in a place with direct sun exposure, high temperature, or humidity. Keep away from chemicals, water, and dust.
Ensure the device is never close to any heat source or open flame to prevent fire.
Ensure the device is connected to an electric power source that does not exceed the maximum load power.
No part of the device may be replaced or repaired by the user.

Z-WAVE CONTROL

There are 2 methods to ADD THE RELAY TO YOUR HUB:

SmartStart: DO NOT POWER THE UNIT BEFORE INITIATING SMARTSTART IN THE HUB UI. Use the hub UI / app to scan the SmartStart code on the device. The SmartStart QR code / security PIN is located on the back of the relay. Simply power the device for SmartStart inclusion after initiating the process in the hub UI, it will be added automatically. Do NOT press the Z-Wave button. For SmartThings, you may need to tap the Z-Wave button 3 times. See below for hub-specific instructions.
Manual inclusion: initiate inclusion (pairing) in the app or hub UI. Make sure the device is powered and finalize the inclusion at the relay: tap the Z-Wave button on the relay 3 times quickly. The LED indicator will blink green to signal communication and turn green for 2 seconds if inclusion is successful or turn red for 2 seconds if the pairing attempt fails.

Hub-Specific Inclusion Steps

How to Add the ZEN57 XS Relay to Home Assistant

How to Add the ZEN57 XS Relay to HomeSeer

How to Add the ZEN57 XS Relay to Hubitat

How to Add the ZEN57 XS Relay to SmartThings

How to Add the ZEN57 XS Relay to Z-Box

TROUBLESHOOTING

The relay won’t add to your system? Try this:

Initiate EXCLUSION and click the Z-Wave button 3 times quickly.
Click the Z-Wave button 3 times as quickly as possible to add.
FACTORY RESET the unit.
Bring the hub closer to the relay, it may be out of range.

The relay won’t control the load manually anymore? Try this:

Turn power off at the breaker and check if a wire didn’t get loose.
Exclude the relay from the hub or reset it.
The load may be incompatible, try a single incandescent bulb.

EXCLUSION (REMOVING / UNPAIRING DEVICE)

Bring your Z-Wave gateway (hub) close to the relay if possible
Put the Z-Wave hub into exclusion mode
Click the Z-Wave button on the relay 3 times quickly (the LED indicator will start blinking green)
Your hub will confirm exclusion, the LED indicator on the relay will turn green for 2 seconds, and the device will be removed.

Can't Add the ZEN57 XS Relay to Home Assistant

Can't Add the ZEN57 XS Relay to HomeSeer

Can't Add the ZEN57 XS Relay to Hubitat

Can't Add the ZEN57 XS Relay to SmartThings

Can't Add the ZEN57 XS Relay to Z-Box

FACTORY RESET

If your primary controller is missing or inoperable, you may need to reset the device to factory settings. To reset the relay, click the Z-Wave button once and immediately aer, press and hold the button for 15 seconds. The LED indicator will flash during the process and turn red for 3 seconds to confirm successful reset. NOTE: All previously recorded activity and custom settings will be erased from the device’s memory.

ADVANCED SETTINGS

ZEN57 XS Relay Advanced Settings

How to Access the Advanced Settings for the ZEN57 XS Relay on Home Assistant

How to Access the Advanced Settings for the ZEN57 XS Relay on HomeSeer

How to Access the Advanced Settings for the ZEN57 XS Relay on Hubitat

How to Access the Advanced Settings for the ZEN57 XS Relay on SmartThings

How to Access the Advanced Settings for the ZEN57 XS Relay on Z-Box

ASSOCIATION

This relay supports Group 1 with up to 5 devices for Lifeline Group communication, Group 2 with up to 5 devices, and Group 3 for up to 5 devices. This device will send BASIC REPORT and SWITCH BINARY REPORT to Group 1 and BASIC SET command to group 2 and group 3 (for EP2) when the status changes. You can set direct association to have the relay control another ZWave device independently of the hub by using Group 2 or Group 3 (for EP2 if parameter 5 is set to value 10). Not every hub exposes direct association settings in the interface so please check with your system provider for details or contact our support for help.

S2

This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. This product features the latest Security 2 (S2) framework to remove smart home network hacking risks. This device is equipped with a unique authentication code for trusted wireless communication.

WARRANTY

This product is covered under a 12-month limited warranty and a 5-year extended warranty once registered. To read the full warranty policy or file a warranty claim, please go to www.getzooz.com/warranty.
